Stonkam 360 Panoramic "Bird View" System - With Recording

360 Panoramic "Bird View" System

Part Number: OTS-360-HD808

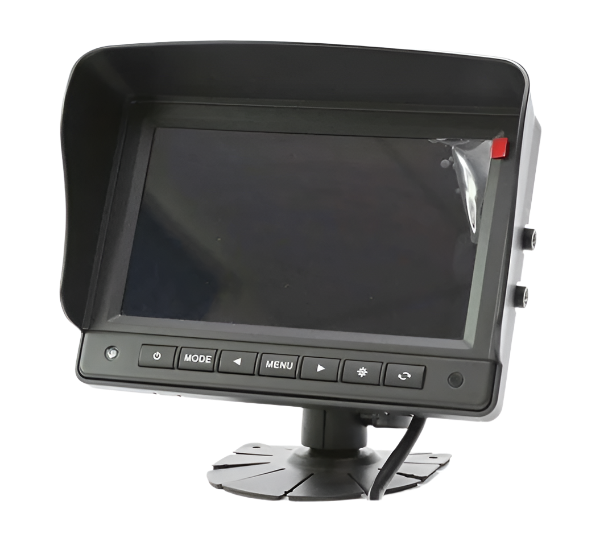

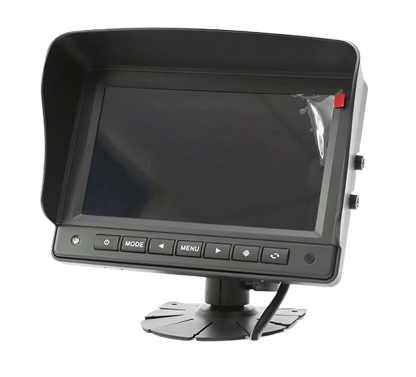

Note: One set of calibration mats are required for setup (included). Monitor is NOT included unless its selected in the options.

Kit Contents:

• OPS: 360° Control Box DVR - With Recording. Output: AHD, CBVS
• X4 Cables - 5m - 20m (Please advise of your requirements - X4 20M As Standard)

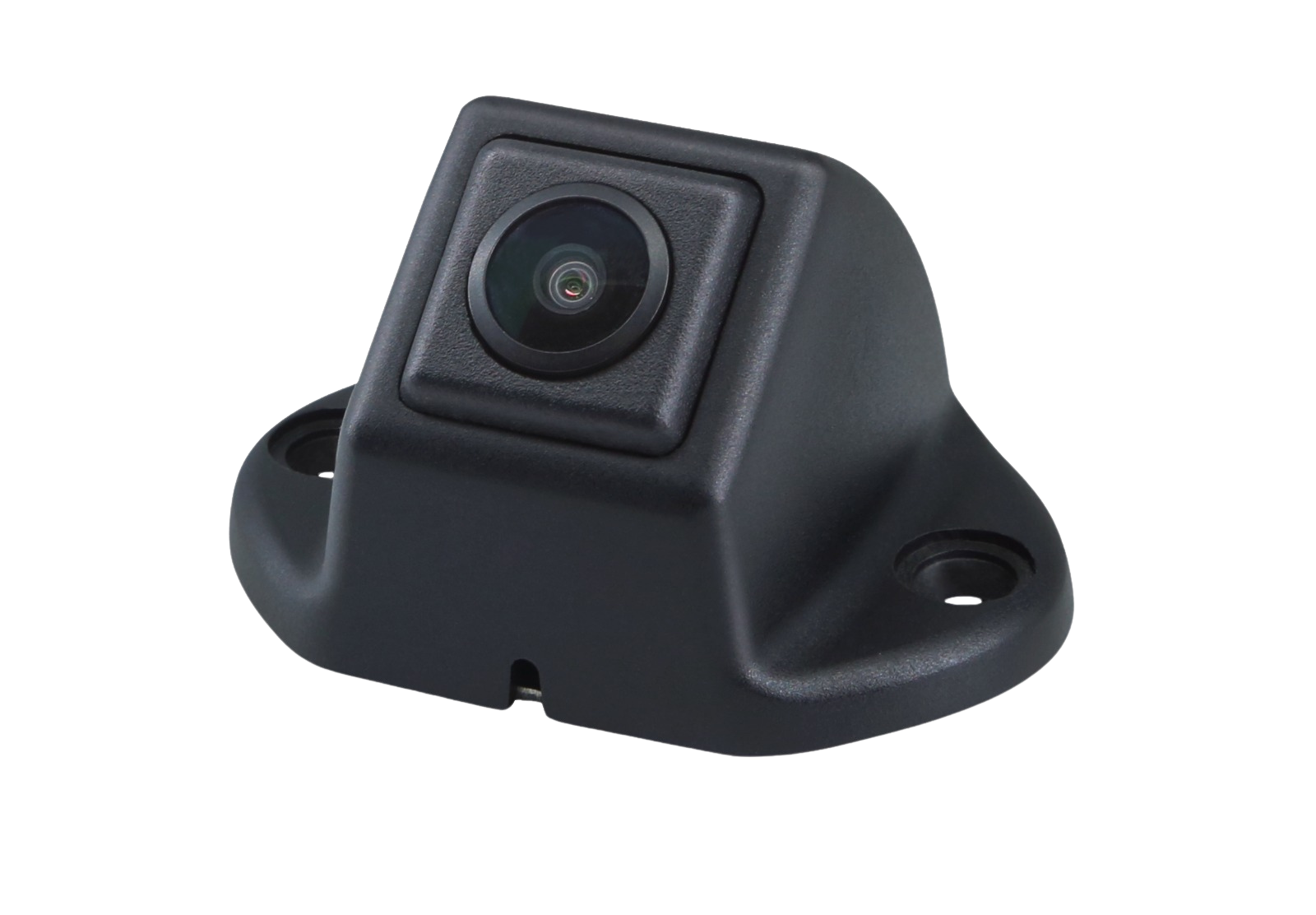

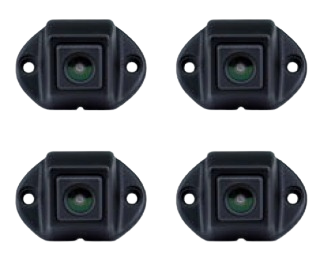

• X4 HD808 Slimline IP69K Cameras - 1080P
• Remote Control
• All Necessary Power Cables
• X4 Calibration Mats
• IR Extension Cable
• Manual
• Installation Accessories

Specifications:

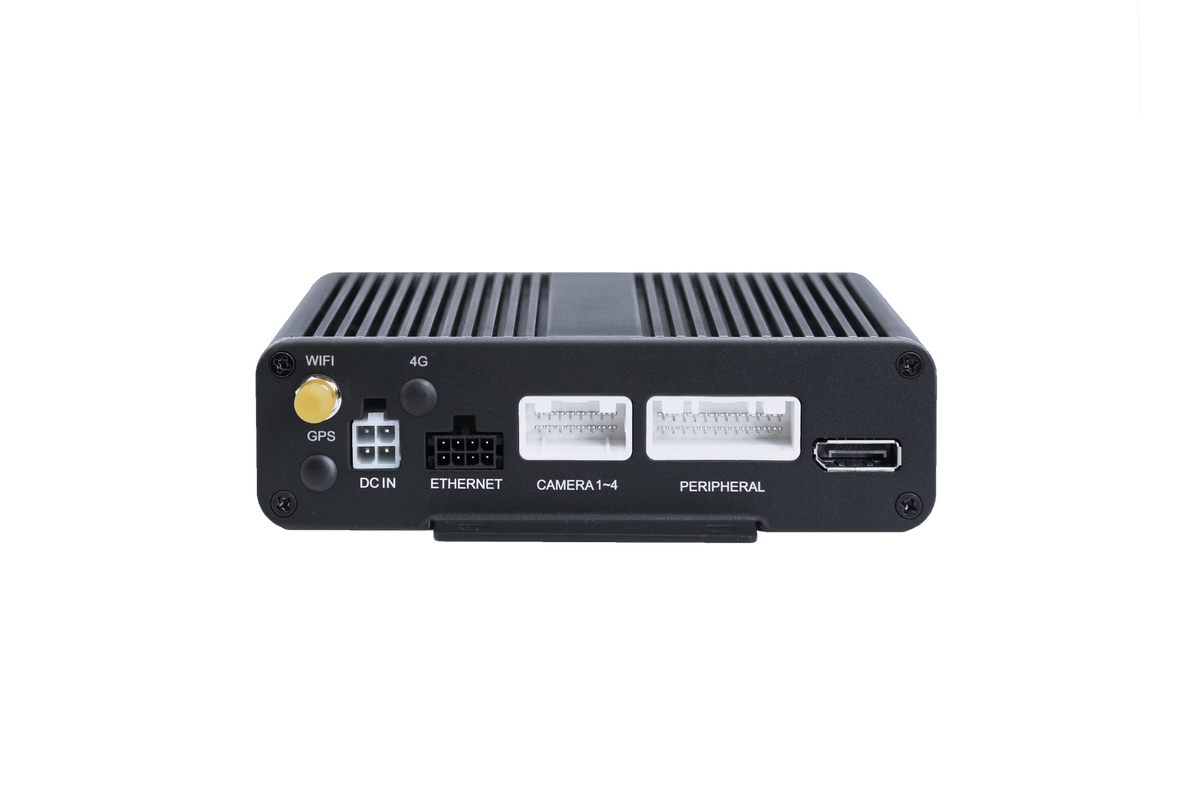

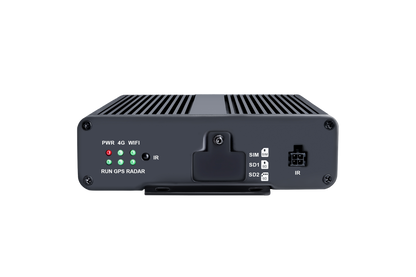

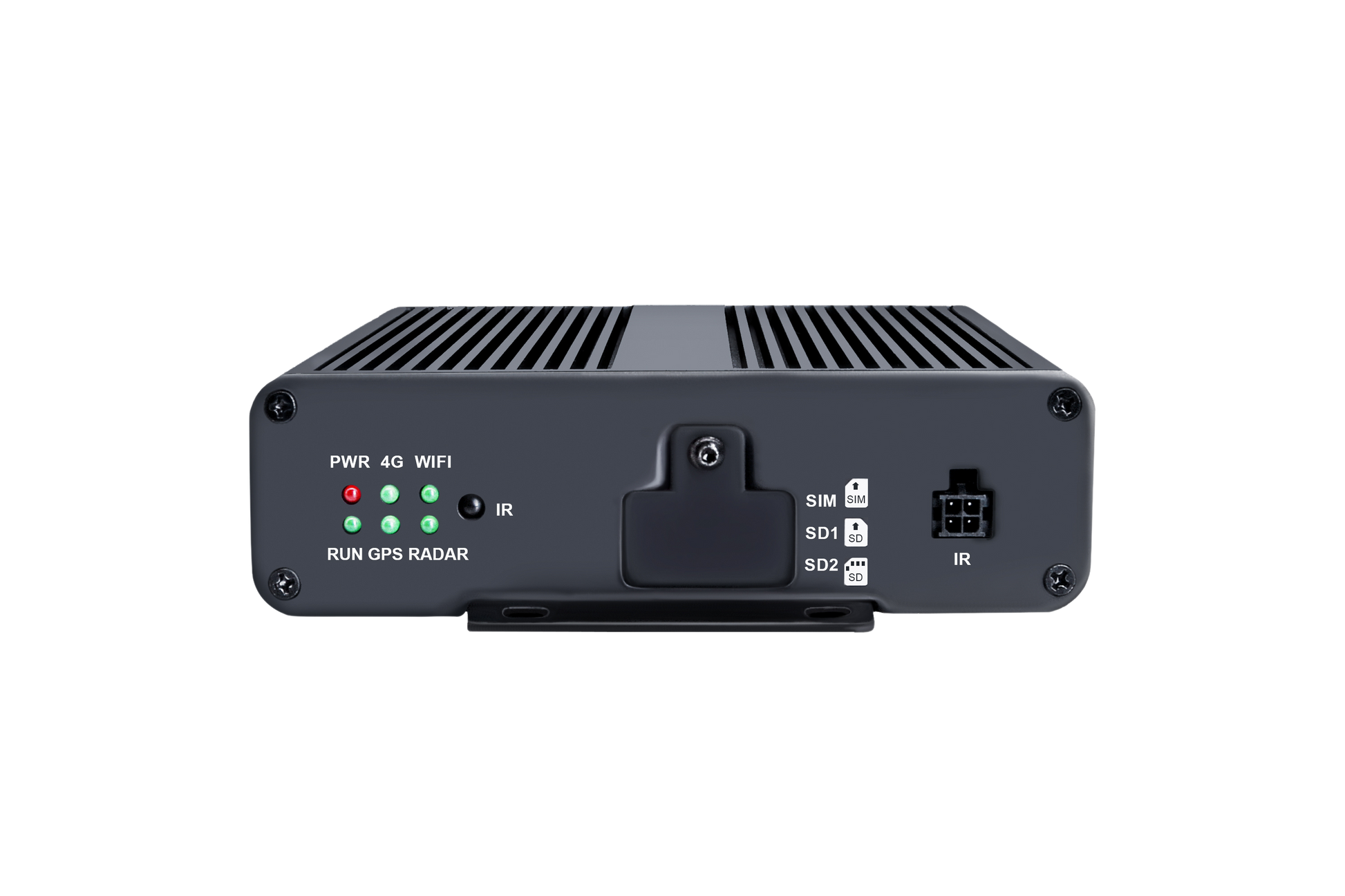

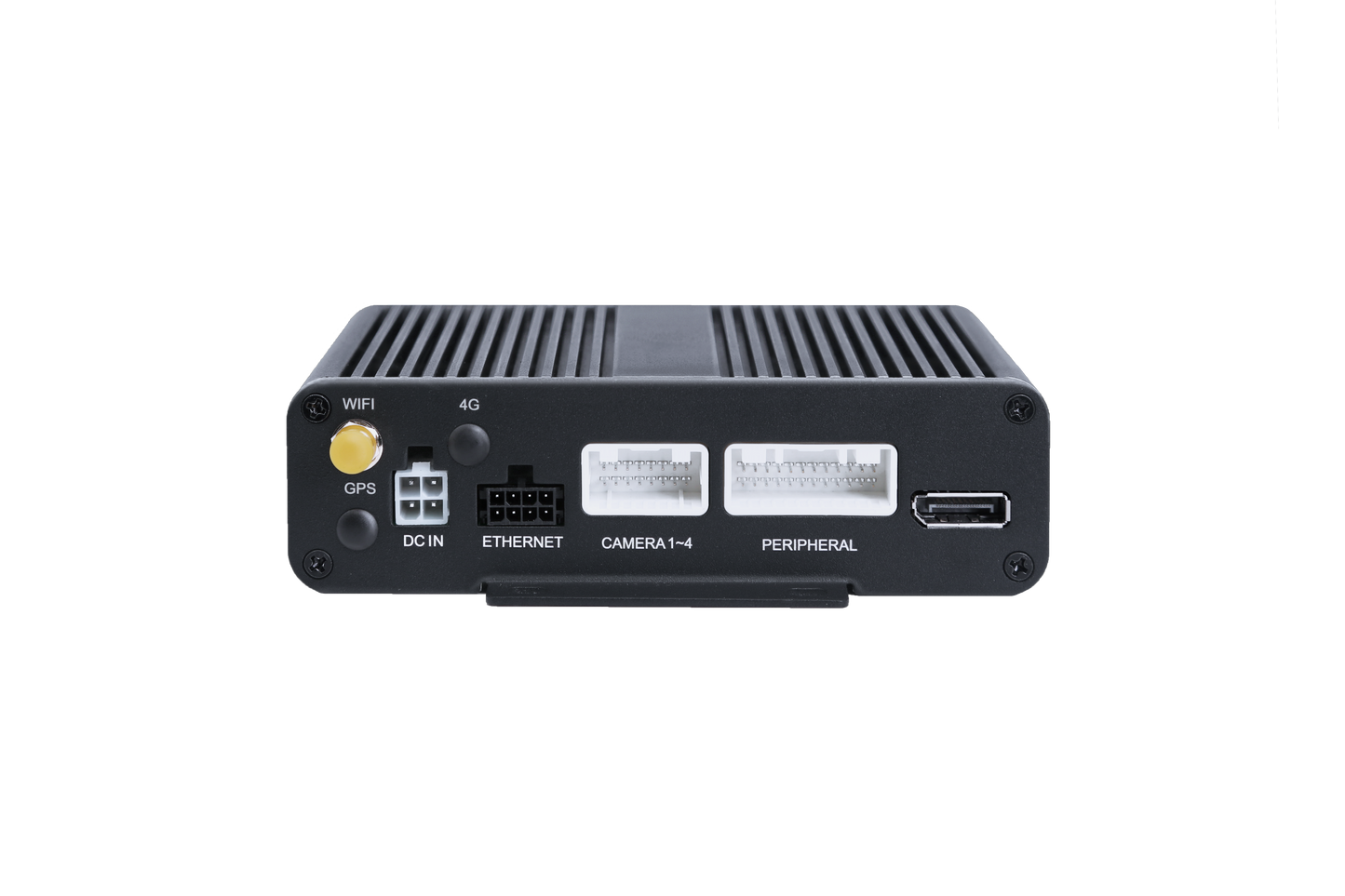

OPS360 Control Box: Compact control box.

1. Quad-core ARM Cotex-A53 and SOC development built-in high-performance H.264 video encoding/decoding to make it efficient to composite seamless images with high accuracy.
2. 2D & 3D Imagery Available.
3.  Supports 2 pcs 256GB SD card for video Recording.

4. Max 4CH 1080P/30fps or 4CH 1080P/25fps resolution.
5. High definition 1080P video output.
6. Input Voltage: 10v - 32v
7. Supports Integration with pedestrian detection cameras
   and radar systems
8. User programmable interface allows for non-symmetrical vehicles (such as plant machinery) to be configured on site via laptop.

Enquire About Our Installation Services - UK Coverage.
